10 Core Figure Self Supporting Flat Drop Fiber Cable Single Mode

  • 1
  • 2

Brand Name : TW-SCIE

Model Number : GJYXCH

Certification : CE, ROHS, REACH, SGS, ISO

Place of Origin : China

MOQ : Negotiable

Price : USD0.02-0.03/m

Payment Terms : L/C, T/T

Delivery Time : 10 working days

Packaging Details : wooden reel

Product name : 10core single mode FTTH Drop Cable

Application : FTTH,FTTH FTTB FTTX Network,telecommunication,Telecom

Fiber : G652D, G657A1, G657A2

Fiber Count : 10 core

Strength Member : Steel Wire

Outer Jacket : LSZH

Contact Now

10 Core Single Mode Figure Self Supporting FTTH Drop Cable

Features

Compact, soft, flexible, easy to install


Optical Characteristics

Fiber Type

Attenuation

Overfilled launch Bandwidth

Effective Modal Bandwidth

10GB/S Ethernet link length

Min Bending Radius

Conditions

1310/1550nm

850/1300nm

850/1300nm

850nm

850nm

Unit

dB/km

dB/km

MHZ.km

MHZ.km

m

mm

G652D

0.36/0.22

16

G657A1

0.36/0.22

10

G657A2

0.36/0.22

7.5

50/125

3.0/1.0

≥500/500

30

62.2/125

3.0/1.0

≥200/500

30

OM3

3.0/1.0

≥1500/500

≥2000

≥300

30

OM4

3.0/1.0

≥3500/500

≥4700

≥550

30

B1-OM3

3.0/1.0

≥1500/500

≥2000

≥300

7.5

B1-OM4

3.0/1.0

≥3500/500

≥4700

≥550

7.5

Structure and technical specification

Fiber Count

Cable Diameter

(mm)

Cable Weight

(kg/km)


Tensile Strength

(N/100mm)

Crush Resistance

(N/100mm)

Short Term

Long Term

Short Term

Long Term

1-4

5.2*2.0

18

600

300

2200

1000

6-12

3.0*9.0

27

1200

600

1100

500

Note : This datasheet can only be a reference, but not a supplement to the contract. Please contact the sales for the details.

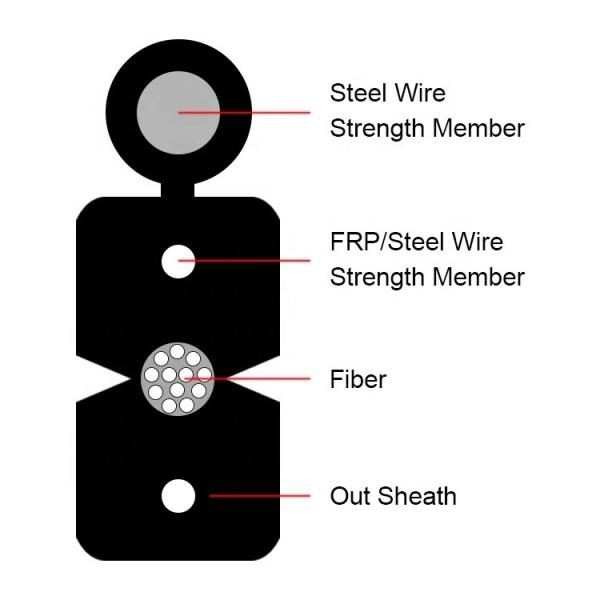

4. Structure and Product Pictures

10 Core Figure Self Supporting Flat Drop Fiber Cable Single Mode10 Core Figure Self Supporting Flat Drop Fiber Cable Single Mode

5. Packing and Shipping

Cable is supplied in lengths as specified in PI or as requirement. Each length will be shipped on a separate non-returnable wooden drum. The minimum barrel diameter of the drum will not be less than 30 times the cable diameter.
The cable on each reel will be completely covered with a thermal wrap which is fastened to the cable by packaging straps. This wrap is reusable and provides excellent thermal and UV protection.
The cable ends will be sealed with plastic protection caps to prevent water penetration. The ends will be easily accessible for testing. A final inspection test report with attenuation performance data for each fiber is attached inside the drum.



10 Core Figure Self Supporting Flat Drop Fiber Cable Single Mode
